Bently 3500/40M 176449-01 Monitor
Bently 3500/40M 176449-01 Monitor
Product manual:

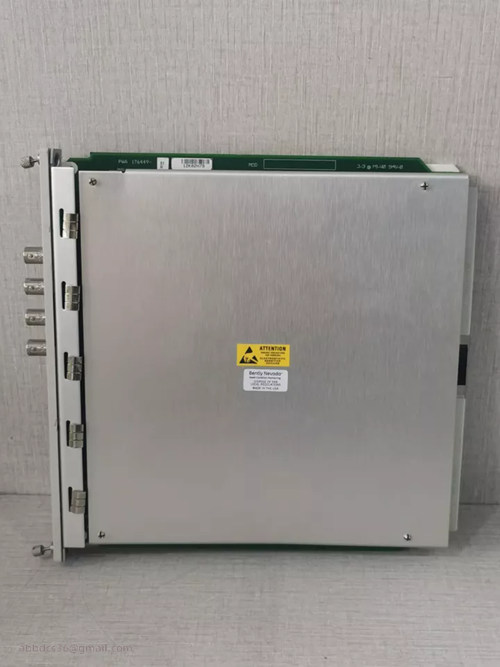

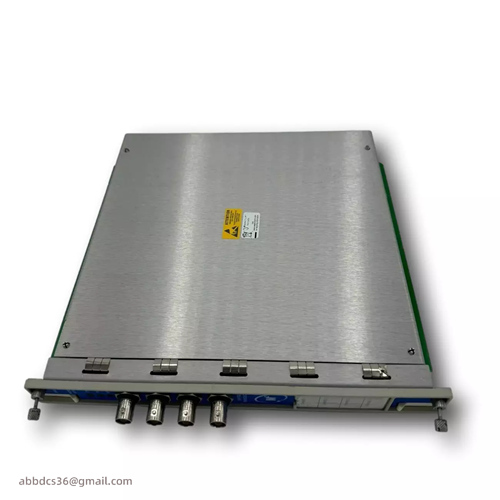

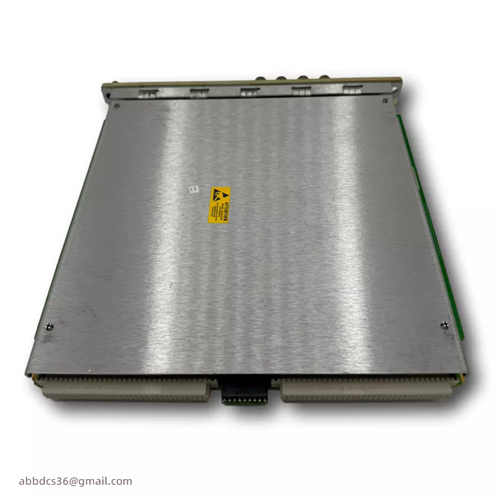

The Bently Nevada 3500/40M 176449-01 monitor is an important module in the 3500 series mechanical protection and monitoring system, designed specifically for monitoring vibration and shaft displacement of critical equipment. It provides high-precision data acquisition, processing, and alarm functions to help industrial users ensure the safe and reliable operation of rotating machinery.
Product Features
Multi functional monitoring capability
Specially designed for monitoring vibration, shaft position, and motion parameters of critical rotating equipment.
Supports multiple input signal sources, including eddy current probes, accelerometers, and velocity sensors.
Modular design
Can be inserted into 3500 racks for easy combination with other modules to meet complex monitoring needs.
The module design is compact, making it easy to install, replace, and expand the system.
Alarm and shutdown protection
Provide dual alarm levels of * * Alert and Danger * *.
Support logical configuration, triggering alarms or shutdown signals when the device is abnormal.
Advanced data processing
Built in filtering and digital signal processing (DSP) functions ensure the accuracy of monitoring data.
Support multi-channel data processing, each channel can be independently configured.
Diagnosis and status indication
Equipped with LED indicator lights to display module status and the operation status of each channel for quick diagnosis.
technical specifications
Monitoring channels: 4 channels (independently configured).
Supported sensor types:
eddy current displacement sensor
Accelerometer
speed sensor
Alarm function:
Each channel supports independent warning and danger alarm threshold configurations.
After the alarm is triggered, a signal can be output to external control devices or shutdown systems.
Power supply method: Powered through a 3500 frame.
Work environment:
Working temperature:- 30 ° C to+65 ° C
Storage temperature:- 40 ° C to+85 ° C
Humidity: 5% to 95% (without condensation)
Signal output: Supports alarm and monitoring data output, compatible with industrial automation systems.
Installation method: Plug in installation, occupying one rack slot.
