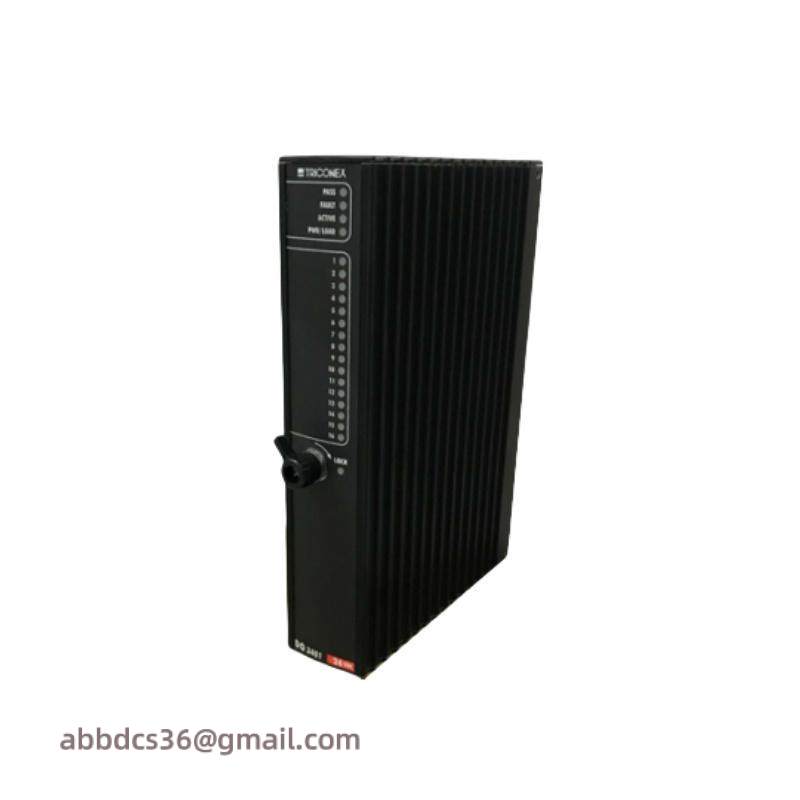

Product Type:Digital Output Module
Manufacturer:Triconex
Model Number:DO3401
Nominal Output Voltage:24 VDC
Operational Voltage Range:15 to 30 VDC
Absolute Maximum Output Voltage:33 VDC
Absolute Maximum Reverse Input Voltage:- 0.6 VDC
Output Current (Switching):<4.8 A, self-limiting; 3.0 A, typical
Output Current (Degraded Mode):> 0.7 A, self-limiting; 1.5 A, typical
Field Alarms:Loss of field power, output point shorted
On or Off Loop-back Thresholds:0–5 VDC = Off region; 6–14 VDC = transition region; 15–30 VDC = On region
Leakage to Load (Off State Glitch):Duration <2 ms; Magnitude ≈36% test voltage
Output Impedance:0–5 VDC, ≈ 100 kΩ
ADC Scan Time:<1 ms for all 32 points
Functional Earth to Protective Earth Isolation:500 VDC, minimum
Functional Earth to Functional Earth (Logic Ground) Isolation:800 VDC, minimum
Engineered for seamless integration into complex industrial automation systems, the Triconex DO3401 Digital Output Module ensures stable and efficient operation under varying conditions.
This module boasts a wide operational voltage range, ensuring compatibility with diverse power supplies found in industrial environments.
Featuring self-limiting switching currents and a transition region for loop-back thresholds, it provides enhanced safety and precision in controlling outputs.
With its advanced diagnostic capabilities, including Force-to-Value Diagnostic (FVD) with sub-millisecond response times, the module maintains optimal performance even under high-speed input toggle rates.
The robust isolation features protect against ground loops and electrical interference, safeguarding system integrity and enhancing reliability in harsh industrial settings.
Designed with durability and longevity in mind, the Triconex DO3401 Digital Output Module is an essential component for any industrial automation project, delivering exceptional control and performance.
