Module Type:Analog Output
Manufacturer:SIEMENS
Model Number:6ES5470-7LA12
Number of Outputs:Floating Compact Version, 8 Outputs
Output Range:+/-10V
Operating Voltage:8 Inputs, 24V DC
Dimensions:Specific Size
Weight:0.78 KG
Connector Type:Floating
Connection Cables:Single-Core
Length:3.2m
Connection Method:Spring Clamp
Application Voltage:VPE=5
Certifications:Industry Standard Compliance

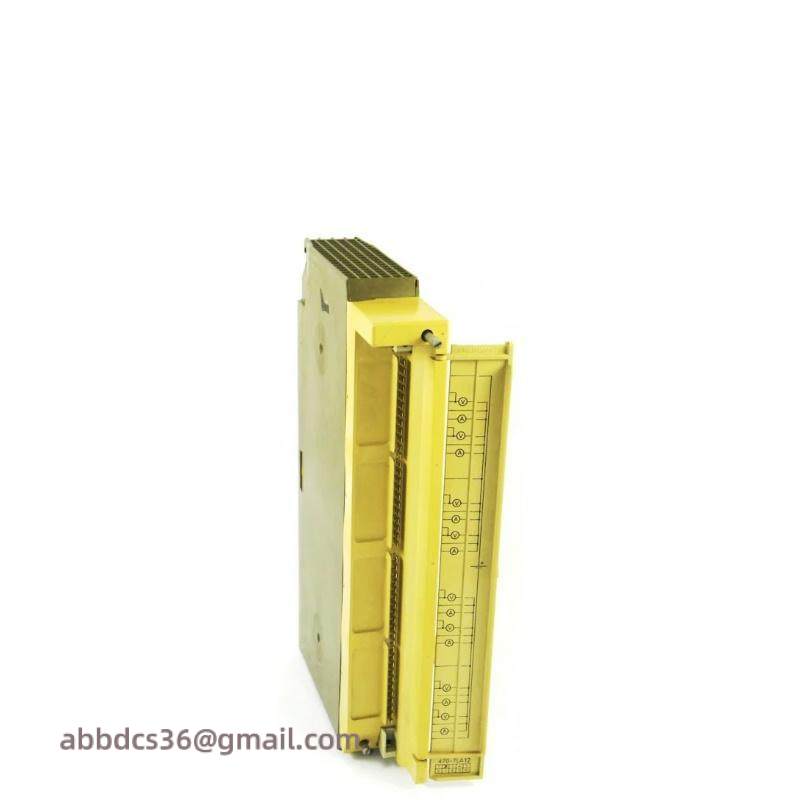

The SIEMENS 6ES5470-7LA12 Analog Output Module is a critical component for advanced industrial automation systems, designed for seamless integration into the robust SIMATIC S5 PLC family. This compact module boasts a floating design, ensuring reliability across a wide range of applications without the need for ground connections. With its high precision and versatile communication interfaces, it supports DeviceNet, Profibus, LonWorks, and CANopen protocols, making it compatible with the latest industry standards.
Each of the 8 outputs is equipped to deliver precise voltage levels of +/-10V, perfectly suited for controlling actuators, sensors, and other devices that require fine-grained adjustment. The module operates on a standard DC 24V input, ensuring compatibility with a wide array of power sources found in industrial environments. Each channel can handle up to 50mA current, providing ample capacity for most industrial tasks.
Equipped with comprehensive protection features, the 6ES5470-7LA12 is designed to withstand harsh industrial conditions, maintaining operational integrity within temperature ranges from -20°C to +55°C during operation and -40°C to +70°C during storage. Its compact size (85mm x 51mm x 51mm) and lightweight construction (approx. 100g) make it highly portable and easy to install in confined spaces.
This module is an essential upgrade for existing SIMATIC S5 systems, enhancing their capability to deliver precise control signals to actuators and sensors. Its compatibility with various communication protocols ensures seamless integration with a wide range of industrial devices, supporting the implementation of advanced control strategies in manufacturing, process control, and automation projects.
Designed with durability and ease of use in mind, the SIEMENS 6ES5470-7LA12 Analog Output Module is a reliable choice for engineers and technicians looking to enhance the performance of their industrial automation systems. Its compact form factor, versatile functionality, and robust build quality make it an indispensable tool in the modern industrial control landscape.
