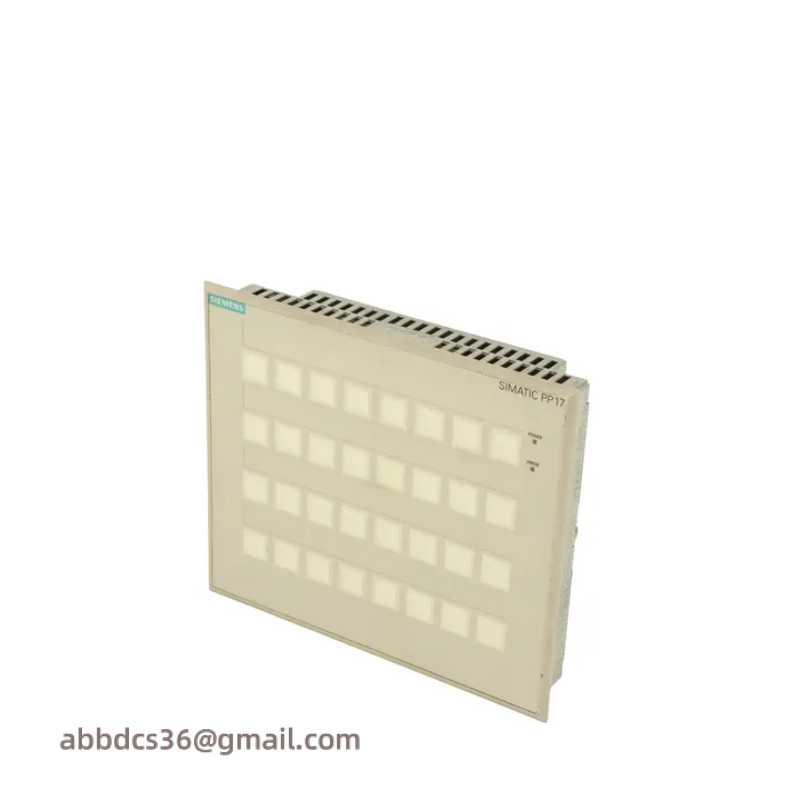

Siemens 6AV3688-3ED13-0AX0 Push Button Panel

Type:Push Button Panel

Model Number:6AV3688-3ED13-0AX0

Producer:Siemens

Operating Temperature:-20°C to 60°C

Power Supply:DC 24V

Input Current:Max. 20mA

Output Configuration:32 Short-Stroke Keys with Surface LEDs

Terminal Configuration:16 Digital Input (DI) and 16 Digital Output (DO) terminals

Communication Interface:Profibus DP12

Dimensions:Customizable based on configuration

Material:Aluminum alloy

IP Rating:IP65

Certifications:[“CE”,”UL”]

    The SIEMENS 6AV3688-3ED13-0AX0 Push Button Panel is engineered to provide precise control and monitoring capabilities for a wide range of industrial processes. Its robust design ensures durability and reliability in harsh environments.

    Featuring 32 short-stroke keys, this panel allows for efficient and tactile operation, minimizing fatigue and improving operational speed. The integrated 32 surface mounted LEDs provide clear visual feedback, enhancing operator awareness and reducing errors.

    With 16 digital input (DI) and 16 digital output (DO) terminals, the panel supports seamless integration with other control devices, enabling complex control strategies and data exchanges. Its PROFIBUS DP12 communication interface ensures compatibility with a broad spectrum of automation systems, facilitating easy installation and maintenance.

    The rugged plastic enclosure protects against dust, moisture, and physical impacts, ensuring longevity and safety in diverse industrial settings. The compact size and industry-standard connector make it compatible with existing setups, allowing for quick and hassle-free installation.

    Designed with user-friendliness in mind, the SIEMENS 6AV3688-3ED13-0AX0 Push Button Panel simplifies the setup and operation of industrial control systems. It’s an ideal choice for factories, manufacturing plants, and any application requiring precise and reliable control mechanisms.
