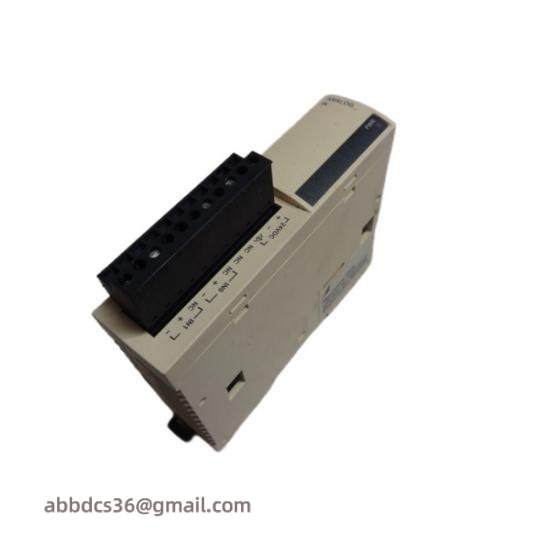

Schneider Electric TWDAMI2HT 2-Point Analog Input Module

Product Type:Analog Input Module

Model Number:TWDAMI2HT

Category:Modicon M238 Logic Controller

Analog Input Number:2

Input Level:High Level

Input Type:Current 4…20 mA, Voltage 0…10 V

Supply Voltage:External, 24 V DC

Supply Voltage Limits:20.4…28.8 V

Electrical Connection:Removable Screw Terminal Block

Current Consumption:40 mA @ 24 V DC, 50 mA @ 5 V DC

Connector Type:1 removable screw terminal block

    The Schneider Electric TWDAMI2HT 2-Point Analog Input Module is a precision-engineered solution for enhancing process control in industrial environments. Its compact design and compatibility with Modicon M238 logic controllers make it an ideal choice for integrating seamless data acquisition capabilities.

    With its dual-channel high-level analog inputs, this module supports both current (4…20 mA) and voltage (0…10 V) signals, providing flexibility for a wide range of industrial sensors and measurement devices.

    Featuring a robust external power supply and a high-rated voltage tolerance, the TWDAMI2HT ensures reliable operation under varying conditions, making it suitable for demanding industrial settings.

    Ease of installation and maintenance are further enhanced by its removable screw terminal block, allowing for quick and secure connections without the need for specialized tools.

    This input module is designed to meet stringent international safety standards, ensuring it can be safely integrated into existing industrial systems without compromising on operational reliability or safety.
