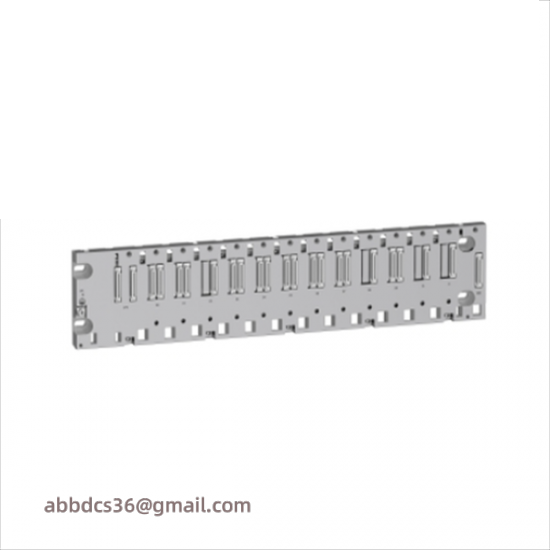

Schneider BMEXBP1200: High-Performance Ethernet Backplane for Industrial Automation

Product Type:Ethernet Backplane

Product ID:BMEXBP1200

Schneider Type Designation:Other

Range of Product:Modicon X80

Accessory / Separate Part Type:Rack

Number of Slots:8 bus X + Ethernet, 4 bus X

Power Consumption in W:283 mW (3.3 V DC), 3.9 W (24 V DC)

Electrical Connection:1 connector (XBE) expansion module

Current Consumption:164 mA (24 V DC), 86 mA (3.3 V DC)

Net Weight:1.377 kg

    The Schneider BMEXBP1200 Ethernet backplane is engineered to elevate your Modicon X80 automation system by providing robust, high-speed communication capabilities. It seamlessly integrates into your existing infrastructure, enabling efficient data transfer and improved system reliability.

    Featuring an impressive 12 slots, this backplane supports both bus X + Ethernet and bus X configurations, catering to a wide range of applications within the industrial environment. Its compatibility with Modicon X80 ensures compatibility and ease of use.

    With its low power consumption, the BMEXBP1200 optimizes energy efficiency without compromising on performance. The compact design and lightweight construction make it easy to install and maintain, enhancing operational efficiency.

    Built with Schneider’s renowned quality standards, the backplane incorporates advanced materials for durability and reliability. This ensures longevity and minimal maintenance requirements, reducing downtime and maximizing productivity.

    The inclusion of an expansion module connector facilitates flexible expansion options, allowing you to adapt to changing requirements without significant system modifications. This modular design ensures scalability and future-proofing of your automation setup.
