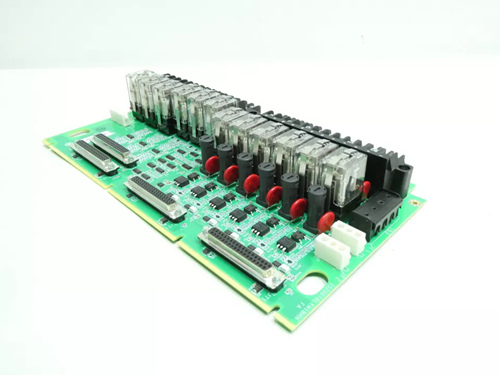

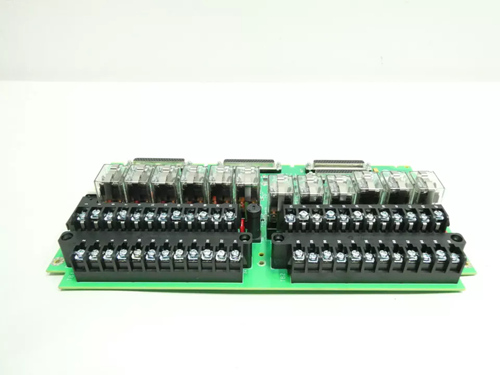

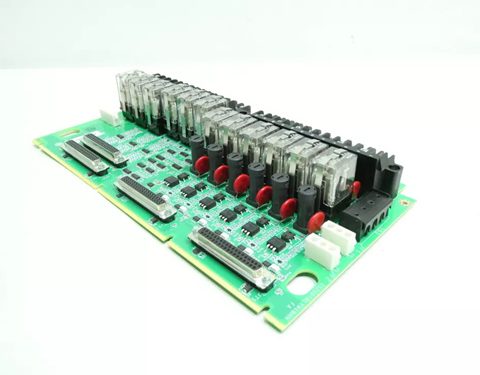

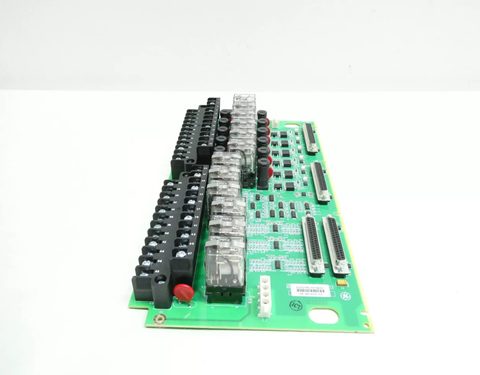

IS410TRLYS1B Central Control Panel

Product manual:

Product Overview
IS410TRLYS1B is part of the GE Mark VIe control system,
Specially designed for critical task control. It is renowned for its high performance, high reliability, and flexible communication capabilities.
Modules are typically used to process control signals, perform logical operations, manage I/O signals, and communicate with other control modules or external devices.
major function
Logic and Control Processing:
Efficiently handle complex logical operations and control tasks.
Provide real-time response, suitable for critical tasks.
I/O signal management:
Directly manage and process input/output signals from sensors and actuators.
Supports multiple signal types, including analog and digital signals.
Communication ability:
Support high-speed data communication with other modules and upper level systems.
Compatible with Modbus, Ethernet, and other industrial communication protocols.
Redundancy and high reliability:
Support redundant configuration to ensure reliable operation of the system even in the event of a single point of failure.
Provide continuous diagnostic function.
Integration with Mark VIe system:
Seamless integration with GE’s Mark VIe system ensures unified system management and optimization.
technical parameter
Power requirement: 28V DC (usually powered from the main control rack).
Working temperature range:- 40 ° C to+70 ° C.
Storage temperature:- 55 ° C to+85 ° C.
Communication interface:
Ethernet (TCP/IP)。
RS-232 or RS-485 interface.
Installation method:
Suitable for 19 inch standard rack.
Support hot swappable design, easy to maintain and upgrade.
