Product Model:469-P5-HI-A20
Manufacturer:General Electric
Voltage Range DC:90 – 300 VDC
Voltage Range AC:70 – 265 VAC
Frequency Range:48 – 62 Hz
Phase Current Inputs:5 A phase CT secondaries
Analog Outputs:Four (4) 4 to 20 mA analog outputs
Environmental Protection:Harsh (chemical) environment conformal coating
Communication Ports:3 (Front RS232, Rear Com RS485 and Aux RS485)
Software Compatibility:EnerVista 469 Setup
Weight Before Packaging:Less than 15 lbs

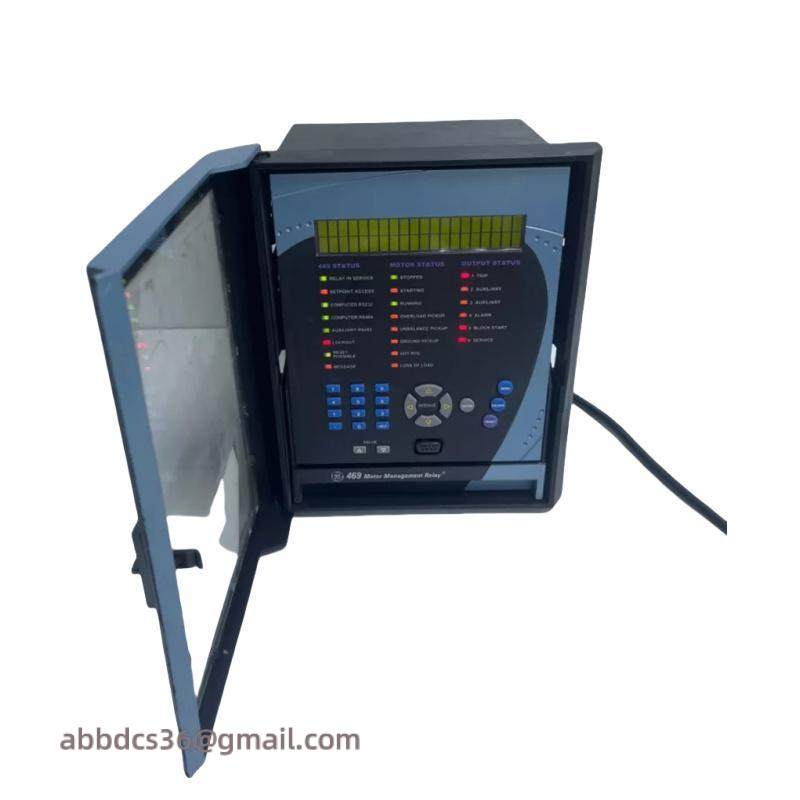

The GE SR469-P5-HI-A20 is a highly advanced motor management relay that ensures the efficient operation and protection of motors in industrial settings. With its robust design and versatile input options, it provides comprehensive monitoring capabilities.
This model features multiple RTD inputs capable of determining actual temperature and the hottest point within the motor system. These RTDs include 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum resistances, providing accurate temperature readings for critical applications.
The relay operates efficiently within a wide range of power supplies, including 90 – 300 Volt DC and 70 – 265 Volt AC, making it suitable for various industrial environments. Additionally, it supports four analog outputs ranging from 4 to 20 mA, enabling seamless integration with other control systems.
Designed for harsh conditions, the GE SR469-P5-HI-A20 comes with conformal coating, which protects against chemical and environmental damage. This feature ensures reliable operation even in challenging industrial settings.
The relay also features three ports (Front RS232, Rear Com RS485, and Aux RS485), facilitating communication and data exchange with other devices. This connectivity enhances the overall functionality and adaptability of the system.
