GE DS200TBQCG1A: High-Performance Analog Termination Board for Mark V Systems

In stock

The DS200TBQCG1A Analog Termination Board is a critical component for General Electric’s Mark V series of turbine control systems, designed to enhance operational efficiency and reliability through precise analog input and output signal processing.

Manufactured By:General Electric

Product Model:DS200TBQCG1A

Series:Mark V DS200

Product Type:Analog Termination Board

Input Current Range:0mA to 20mA

Operating Voltage:12V DC

Current Consumption:Less than 2mA

Communication Interface:RS-485

Environmental Temperature Range:-20°C to +70°C

Storage Temperature Range:-40°C to +85°C

Dimensions (LxWxH):148mm x 103mm x 32mm

Weight:Approx. 0.24kg

The DS200TBQCG1A Analog Termination Board is meticulously engineered to meet the rigorous demands of modern turbine control systems, ensuring accurate and reliable data transmission under diverse environmental conditions.

Featuring robust voltage-limiting hardware components, including rectifiers, capacitors, and diodes, this board optimizes power handling and protects against overvoltage events, thereby extending the lifespan of your turbine control system.

Its thick, standard PCB surface coating not only enhances electrical insulation but also provides mechanical durability, making it suitable for harsh industrial environments.

With its compact design and efficient current consumption, the DS200TBQCG1A ensures minimal space utilization and energy savings, contributing to the overall cost-effectiveness of your operations.

Comprehensive compatibility with GE’s Mark V series ensures seamless integration, facilitating streamlined system upgrades and maintenance procedures without compromising performance or safety.

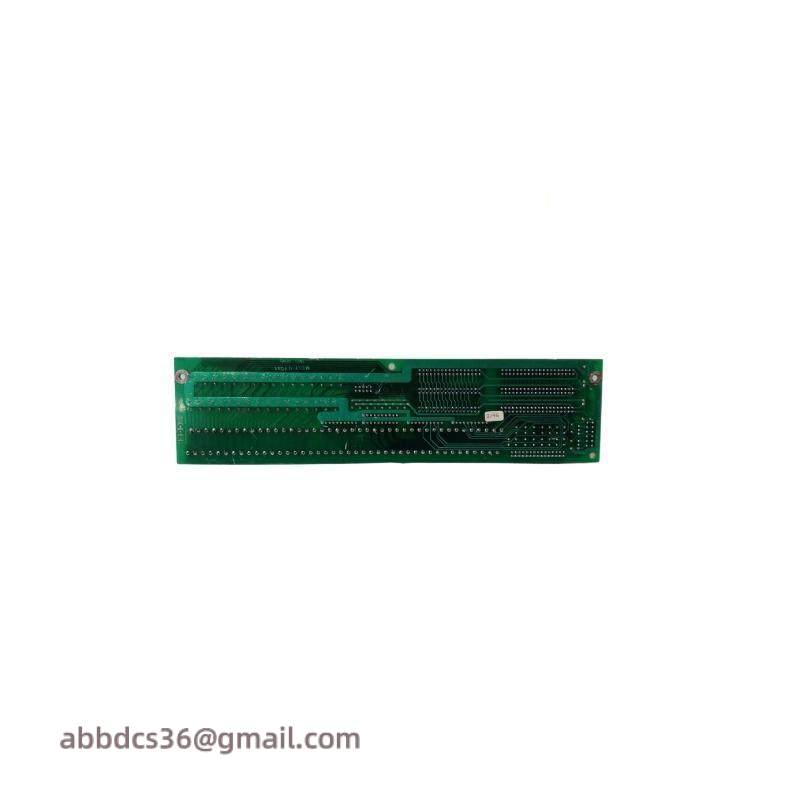

GE DS200TBQCG1A Analog Termination Board
