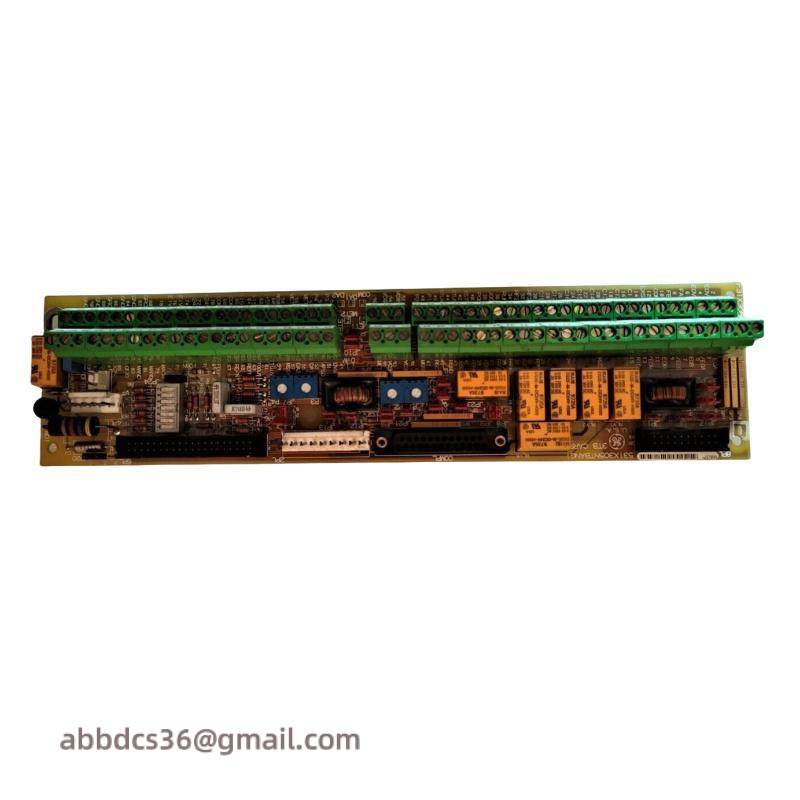

Product Type:Terminal Board
Series:531X
Model Number:531X305NTBANG1
OEM:GE Motors and Industrial Systems
Instruction Manual:GEI-100020B (Supersedes GEI-100020A)
Power Consumption:Regulated supplies rate at 5 VDC and 15 VDC, Unregulated supplies at 24 VDC or 125 VAC
No. of Channels:4 Channels
Contacts Rating:120 VAC per relay
Encoders Rated:5 V and 15 V configurable using onboard jumpers
Serial Interfaces:RS-232C and RS-422
Analog I/O:Low-level analog input and output, analog tach coarse scaling
Weight:0.44 kg
The GE 531X305NTBANG1 Terminal Board is meticulously designed for seamless integration into high-demand industrial automation environments. Its compact yet robust design ensures longevity and reliability under harsh conditions.
This advanced terminal board supports both regulated and unregulated power supplies, providing flexibility for various applications. The ability to configure encoders using onboard jumpers enhances its adaptability to diverse systems.
Equipped with seven relay outputs, the board offers versatile control options, supporting form A or form C connections. Each relay contact boasts a rating of 120 VAC, ensuring reliable operation in demanding scenarios.
The inclusion of low-level analog input/output capabilities, scaled through four potentiometers, enables precise control over auxiliary devices. This feature is particularly advantageous in applications requiring fine-grained adjustments.
In addition to its technical prowess, the GE 531X305NTBANG1 is designed with ease of installation and maintenance in mind. Its comprehensive installation parameters and user-friendly interface facilitate quick setup and ongoing management.
