Control Power Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Differential Switch Time Delay:<200 ms
Dimensions:approx. 29.6cm H x 10.7cm W x 20.5cm L
Insulation Class:I
Phase Current Input:1 A and 5 A secondary
RTD Inputs:3 wire, 100 Ω platinum, 100 Ω nickel, 120 Ω nickel, 10 Ω copper
Weight:approx. 10 lbs

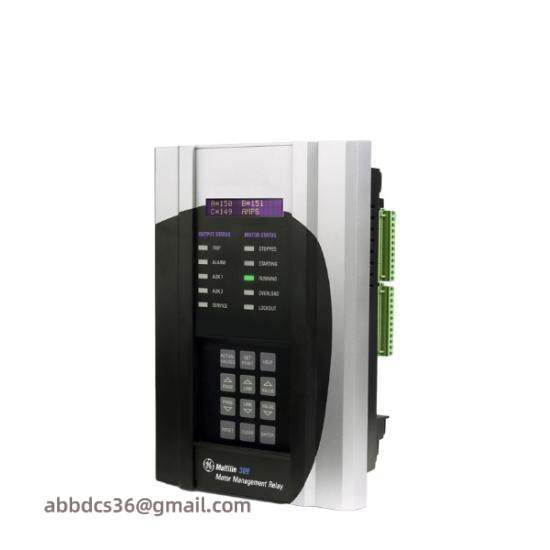

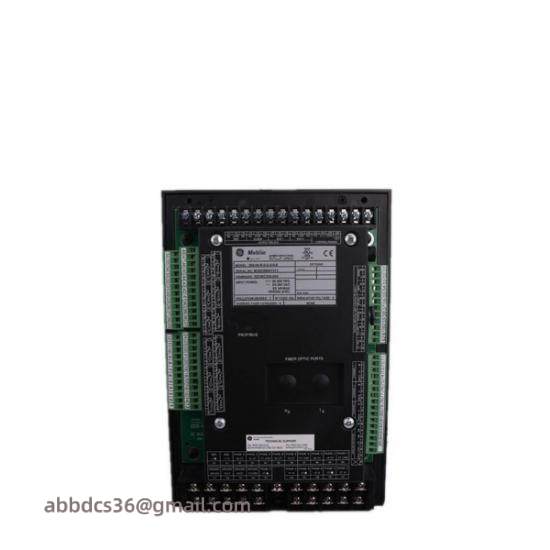

Engineered for high performance, the GE 369-HI-R-0-0-0-0-E relay is designed to control and protect medium to large motors with precision.
Adaptive capabilities allow the relay to learn and adjust to the unique parameters of the motor system, ensuring reliable operation.
With its comprehensive metering features including event reports, waveform captures, and startup data logging, the relay offers invaluable insights into system performance.
The optional twelve built-in RTD ports facilitate monitoring of temperature and other critical conditions, enhancing safety and efficiency.
Equipped with features such as undervoltage auto-restart, reverse power detection, and more, this relay ensures robust protection against common motor issues.
