Operating Range:-40°C to 125°C
Input Type:Thermocouple (Type J, K, T, E, R, S, B)
Output Type:Resistance Temperature Detector (RTD) – 2-Wire, 3-Wire, or 4-Wire
Accuracy:+/-0.1°C to +/-0.5°C (depending on input and output type)
Supply Voltage:12VDC to 30VDC
Current Consumption:Max 25mA
Connection:Standard BNC connector, 2-wire RTD connection
Protection Rating:IP65
Operating Humidity:0% to 95% non-condensing
Temperature Coefficient of Resistance (TCR):±25 ppm/°C

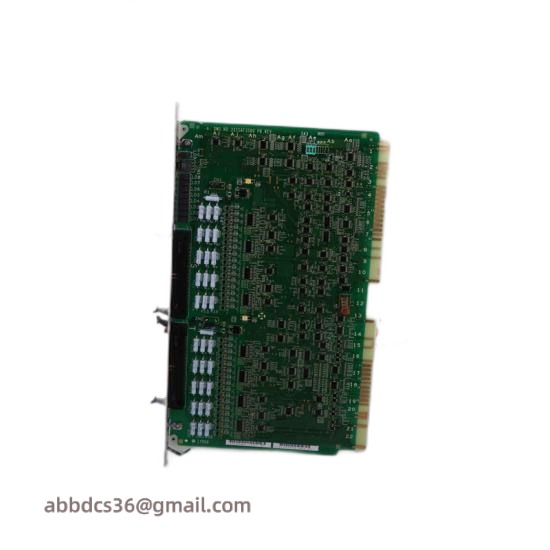

The CTI RTD Module 2559 is a cutting-edge temperature measurement device that delivers exceptional accuracy and reliability in harsh industrial environments. Its wide operating range (-200°C to +850°C) ensures it can handle extreme conditions, making it ideal for applications in oil and gas, chemical processing, and manufacturing industries.
Equipped with an advanced microcontroller, the module provides real-time temperature readings with a remarkable accuracy of +/- 0.01% of full scale, ensuring precise control and monitoring. The input resistance of 100 Ohms ensures compatibility with a variety of RTD sensors, maximizing the flexibility of the system.
Featuring a response time less than one second, the CTI RTD Module 2559 ensures quick and responsive temperature measurements, crucial for dynamic process control. It operates efficiently within a voltage range of 10 to 30 VDC, with a maximum power consumption of 2.5 W, making it energy-efficient.
Adhering to industrial standards, the module supports RS485 Modbus RTU interface for seamless integration into existing control systems. This allows for easy setup and data transmission, enhancing the system’s overall performance and reliability.
Designed for durability and robustness, the CTI RTD Module 2559 withstands harsh environmental conditions, with operating temperatures ranging from -40°C to +85°C and storage temperatures from -40°C to +104°C. Its compact and rugged design ensures long-term reliability in demanding industrial settings.
