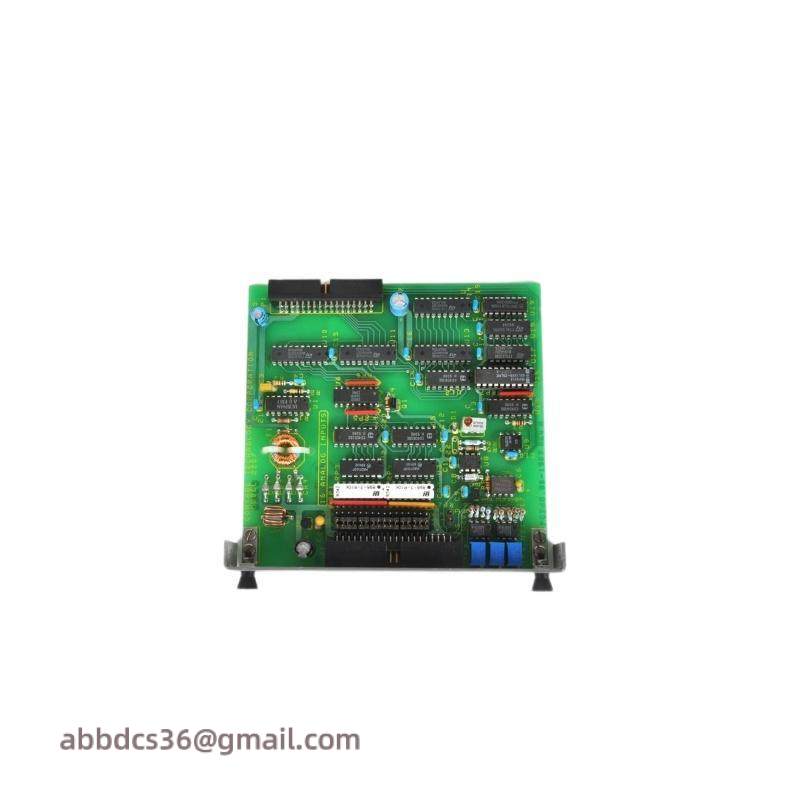

CTC 2207 – 16-Channel Analog Input Module

Number of Channels:16

Type of Input:Analog

Sampling Rate:Up to 1 kHz

Accuracy:±0.05%

Power Consumption:Less than 5 W

Communication Interface:RS-485

Operating Temperature:-20°C to +70°C

Dimensions:95 mm x 95 mm x 35 mm

Weight:150 g

    The CTC Systems 2207 Analog Input Module is specifically engineered for demanding industrial environments, featuring a robust and durable design capable of withstanding extreme temperature fluctuations. With its 16 channels, it provides versatility for a wide range of monitoring and control applications.

    Equipped with a 12-bit resolution, this module ensures highly accurate data acquisition, crucial for precise process control and monitoring. The input range from -10V to +10V caters to various industrial signals, making it suitable for diverse applications.

    Designed with an efficient power supply of 12VDC ±10%, the CTC Systems 2207 guarantees reliable operation under varying conditions. Its wide operating temperature range (-40°C to +85°C) ensures continuous performance across different industrial settings.

    The compact size of 96mm x 48mm x 25.4mm and DIN rail mountability make it easy to integrate into existing systems without compromising on space efficiency. The use of terminal blocks facilitates simple and secure connection, simplifying installation and maintenance processes.

    With a data rate capability of up to 1kHz per channel, the module ensures real-time data acquisition, critical for responsive industrial control systems. Its terminal block connections offer a straightforward interface for wiring, enhancing user-friendliness and reducing setup time.
