Product Type:Axis Controller Module
Counter Resolution:24 bit
Inputs:HEDL (HP/AVAGO interface) / RS422 Encoder
Encoder Power Supply:+5 V or +15 V selectable with jumper
Output Voltage:Low: 0 to 2 V, high: 3 to 34 V, Imax = 10 mA
Voltage Range:18 to 34 VDC
Stepper Motor Control:2x Out 150kHz, 2x In INC, 1MHz, RS422
DI Connections:8x DI 24V
Acceleration Modes:Linear, sine², parabolic
Power Amplifier:Without power amplifier
Encoder Supply Voltage:5/15V

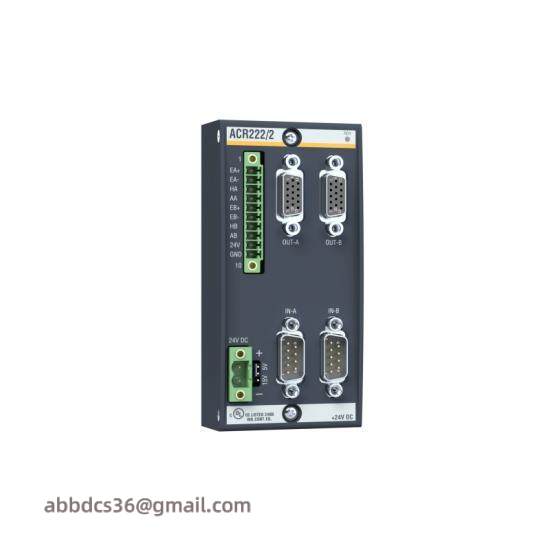

The BACHMANN ACR222/2 Axis Controller Module boasts an impressive 24-bit counter resolution, ensuring unparalleled accuracy in motion control applications.
With dual HEDL (HP / AVAGO interface) and RS422 Encoder inputs, this module seamlessly integrates with a wide range of encoder systems, enhancing compatibility and performance.
Offering a versatile power supply selection between +5 V and +15 V through a simple jumper, users can customize the module to meet their specific power requirements.
Capable of delivering low and high output voltages (0 to 2 V and 3 to 34 V respectively), the ACR222/2 ensures compatibility with a variety of stepper motors and other electrical components.
Equipped with a robust voltage range of 18 to 34 VDC, the module is designed to withstand challenging industrial environments, guaranteeing reliable operation under varying conditions.
The inclusion of acceleration modes such as linear, sine squared, and parabolic further enhances the control precision, making it suitable for complex motion profiles in manufacturing processes.
