Number of Selectable Inputs:8
Number of Selectable Outputs:4
Relay Output:Available
Serial Communication Ports:1 supporting RS232 and RS485
Encoder Support:Embedded for multi-turn absolute encoders
External Logic Power:Option for maintaining actuator position during power loss
Compliance Status:Not compliant with EU RoHS directive
Drive Size:(198.12 x 144.27 x 72.64 mm)
Input Voltage Range:100-240VAC rms, 1-Phase
Frequency Range:47-63 Hz
Output Voltage Range:100-240VAC
Continuous Output Power:1kW
Continuous Output Current:5A
Intermittent Output Current:15A
Operating Temperature:-10°C to +50°C
Storage Temperature:-20°C to +60°C

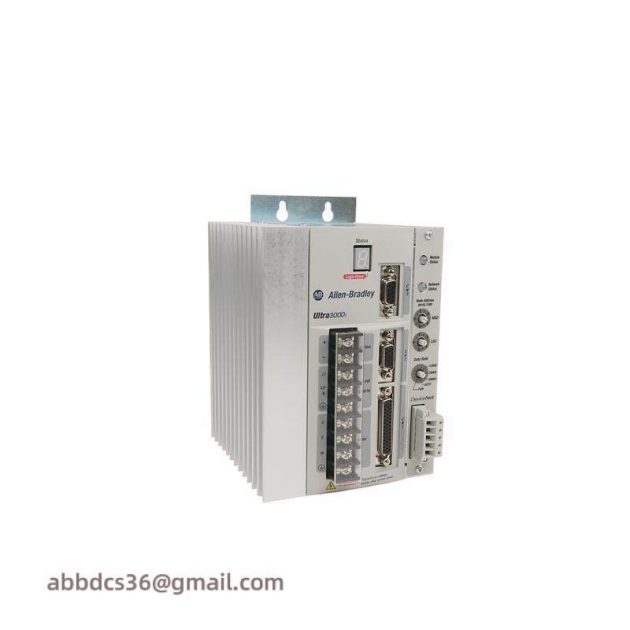

The Allen-Bradley 2098-DSD-010X-DN boasts a compact design, integrating advanced digital control algorithms for superior performance in motion control applications.
Equipped with eight selectable general-purpose inputs and four selectable general-purpose outputs, this drive offers flexibility for a wide range of control scenarios.
With its RS232 and RS485 communication capabilities, it seamlessly integrates into existing network infrastructures, enhancing connectivity and data exchange.
The drive’s capability to maintain actuator position upon power loss, thanks to the option for external logic power supply, ensures reliability in critical operations.
Engineered with precision and efficiency in mind, the 2098-DSD-010X-DN is ideal for applications requiring high accuracy and responsiveness, making it a valuable asset in the modern industrial automation landscape.
