Input Voltage Range:19.2 to 31.2 Volts DC
Amperage Rating:400 MA Load
Capacity:8 I/O Module
Mounting Options:DIN Rail, Panel
Communication Speed:125/250/500 KBPS
Dimensions:Length: 3.7 IN, Width: 3.6 IN, Height: 3.4 IN
Enclosure Type:Open Type
Temperature Rating:-20 to 70 DEG C
Power Dissipation:7.6 W At 19.2 VDC
Environmental Conditions:5 – 95% Non-Condensing Relative Humidity
Shock Resistance:30 G Operating
Vibration Resistance:5 G At 10 – 500 HZ
Standard/Approvals:UL listed

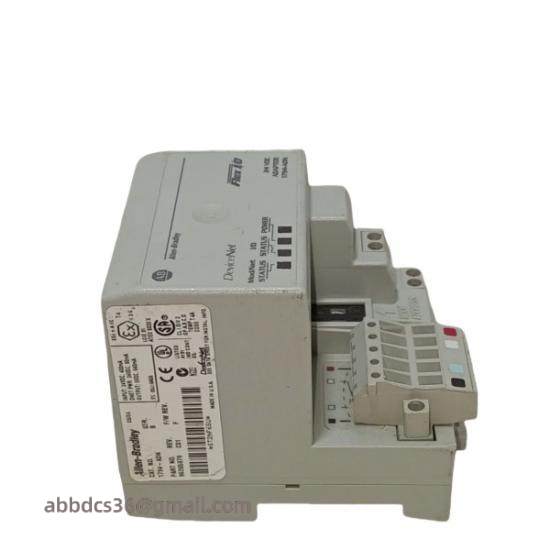

The Allen Bradley 1794-ADN is an indispensable component for industrial automation systems, designed to optimize communication networks through its DeviceNet protocol support. Its compatibility with multiple devices ensures a robust and flexible network architecture.
With a single DeviceNet port, the module offers a reliable connection for data exchange, enabling efficient control and monitoring across various industrial applications. The DIN rail and panel mounting options provide versatility in installation, fitting seamlessly into diverse environments.
The 19.2 to 31.2 VDC voltage rating allows for broad application within industrial settings, ensuring compatibility with a wide range of power sources. Its impressive amperage rating of 400mA load capacity supports efficient operation under varying conditions.
The module’s temperature rating of -20°C to 70°C ensures durability in harsh industrial environments, while its 5% to 95% non-condensing relative humidity resistance maintains optimal performance even in challenging climates.
Safety and reliability are paramount with the Allen Bradley 1794-ADN. It withstands up to 30G shock during operation and 5G vibration at frequencies from 10Hz to 500Hz, providing peace of mind in critical applications.
Featuring an open-type enclosure, this module ensures easy access for maintenance and troubleshooting, facilitating quick repair or upgrade processes when necessary. Its compact dimensions and lightweight design make it ideal for both new installations and retrofit projects in industrial settings.
