Model Type:Communication Bridge Module
Manufacturer:Allen-Bradley
Model Number:1756-ENBT/A
Communication Speed:10/100 Mbps
Communication Protocol:Ethernet/IP
Enclosure Type:Open
Power Supply Compatibility:3 MA at 24 VDC
Mounting:Chassis
Temperature Range:0 – 60 °C
Environmental Conditions:5 – 95% non-condensing relative humidity
Vibration Resistance:2 G
Shock Resistance:30 G
Connection Cable Compliance:IEEE 802.3 compliant shielded or unshielded twisted pair
Power Dissipation:5.1 W
Isolation:30 V continuous

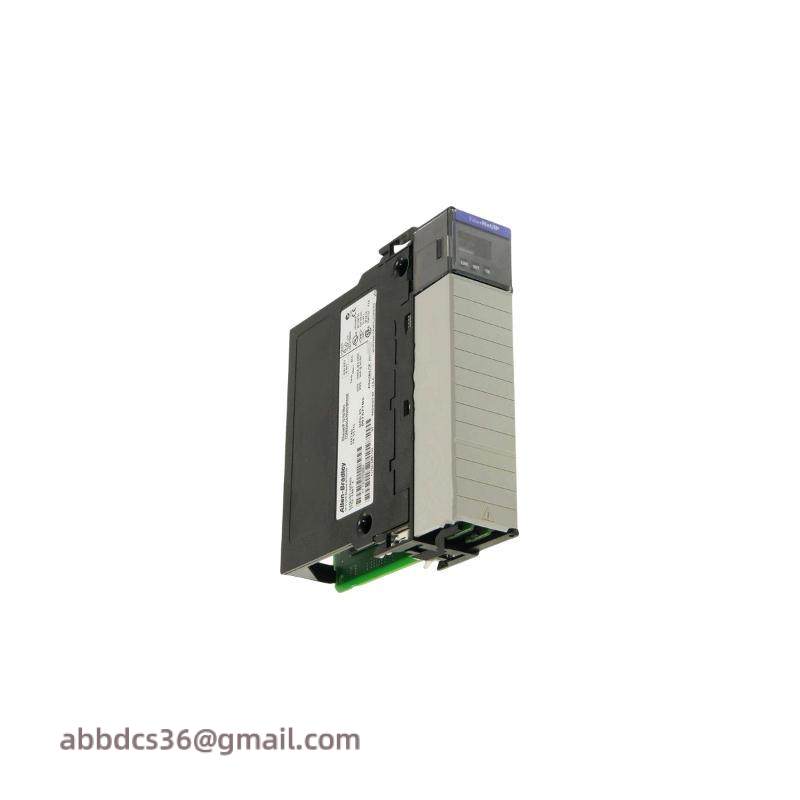

The Allen Bradley 1756-ENBT/A Ethernet/IP Communication Bridge Module is designed to optimize industrial automation systems by providing a robust connection between ControlLogix PLCs and Ethernet/IP networks. This ensures rapid and reliable data transmission, critical for efficient operation in manufacturing and industrial settings.
With an open type enclosure, the module offers versatile mounting options, allowing for easy integration into diverse control panel configurations. Its compatibility with shielded or unshielded twisted pair cables ensures a stable connection, even in environments with high levels of electromagnetic interference.
Operating within a temperature range of 0 to 60 degrees Celsius, this module is engineered to withstand challenging industrial conditions, maintaining its performance under varying environmental pressures. Its low power dissipation (5.1 W) contributes to energy efficiency, reducing operational costs.
Featuring resistance to vibrations and shocks up to 2 G and 30 G respectively, the Allen Bradley 1756-ENBT/A is built to endure the rigors of industrial applications, ensuring minimal downtime and enhanced reliability.
Despite its impressive technical capabilities, the module maintains a compact size, minimizing its impact on valuable space within control cabinets. Moreover, its lack of a USB port aligns with the primary purpose of connecting to Ethernet/IP networks, focusing resources on achieving optimal network performance.
