Model Type:SLC500
Model Number:1746-OB16
Manufacturer:Allen Bradley
Number Of Channels:16
Input:24 VDC
Output:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load:1 MA
Current Rating:{“Backplane”:”0.28 A”,”Continuous Current Per Output”:”0.25 A At 60 DEG C”,”Continuous Current Per Module”:”4 A At 60 DEG C”}
Isolation:{“Communication Circuits”:”500 VDC”,”Backplane”:”1500 VAC”}
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60 DEG C
Environmental Conditions:5 – 95%

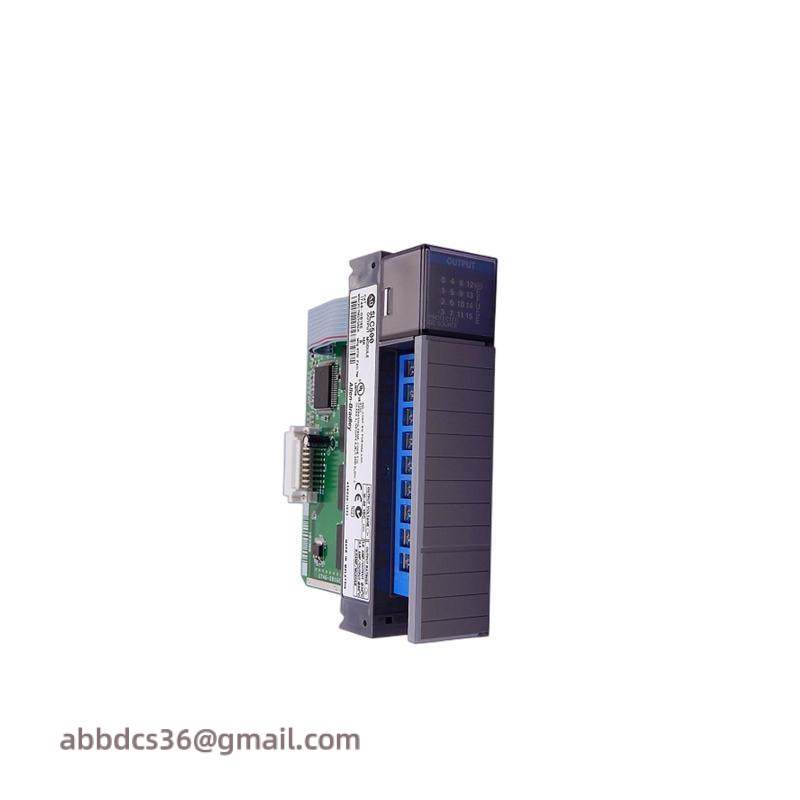

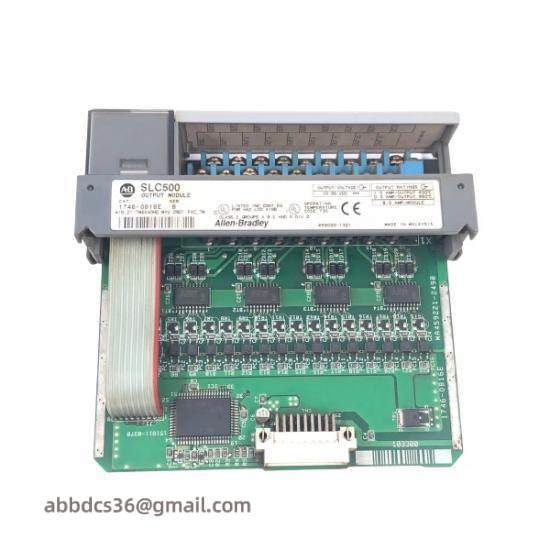

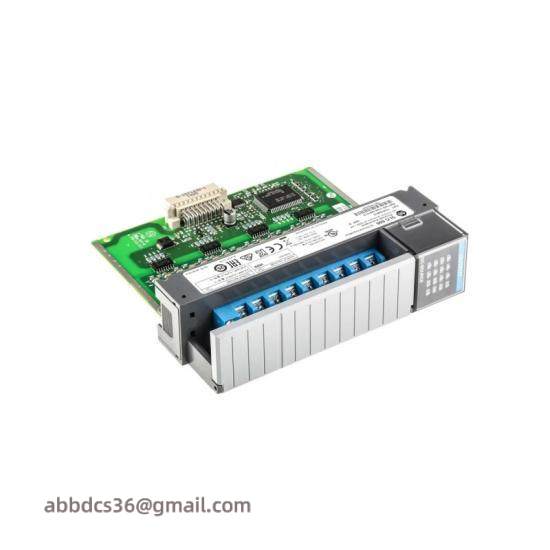

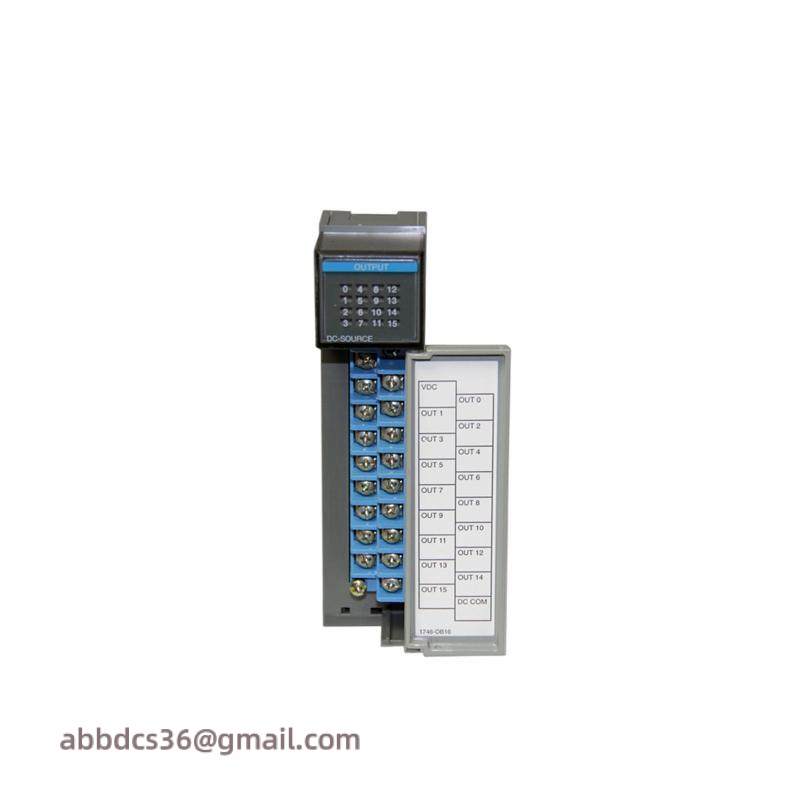

The AB 1746-OB16 Digital DC Output Module is an essential component for industrial automation systems. Its robust design ensures long-lasting performance even in challenging environments. With 16 channels of digital output, it offers versatile control options for a wide range of applications. The module’s input voltage of 24 VDC makes it compatible with various control systems, while its output range of 10 – 50 VDC provides flexibility in signal transmission. The on-state voltage drop of 1.2 V and off-state output leakage of 1 MA ensure efficient and accurate signal handling. The load capacity of 1 MA and current ratings provide reliable performance under varying conditions. The isolation specifications, including communication circuits at 500 VDC and backplane at 1500 VAC, enhance safety and reliability. This module is designed for mounting on a chassis and operates within a temperature range of 0 – 60 DEG C, making it suitable for diverse industrial settings. The open-type enclosure allows for easy installation and maintenance. With its high precision and reliability, the AB 1746-OB16 is ideal for industries requiring precise digital control solutions.
