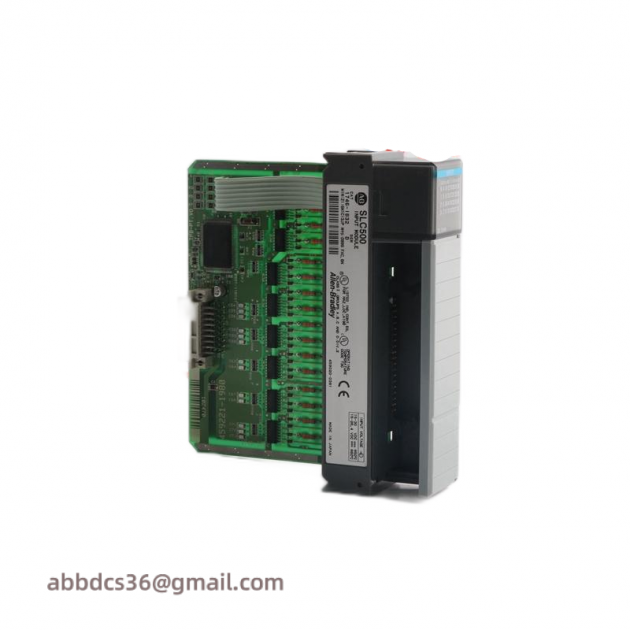

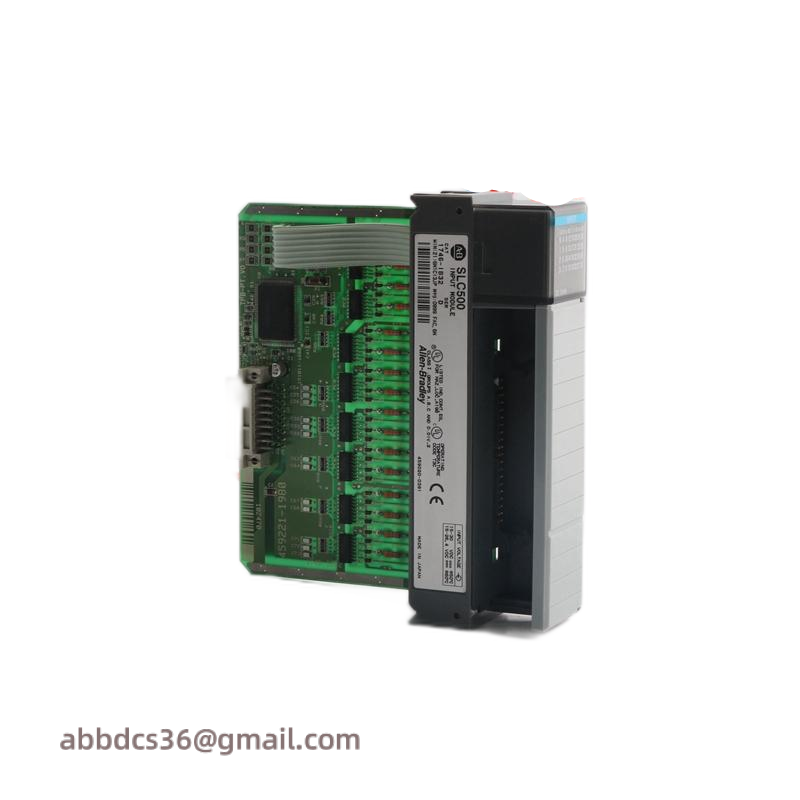

Model Type:SLC500
Model Number:1746-OB16
Manufacturer:Allen Bradley
Digital DC Output Module:Yes
Number of Channels:16
Input Voltage:24 VDC
Output Voltage Range:10 – 50 VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Current Rating:Backplane: 0.28 A, Continuous Current Per Output: 0.25 A at 60 °C, Continuous Current Per Module: 4 A at 60 °C
Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC
Processor:SLC 500
Enclosure Type:Open Type
Mounting Method:Chassis
Temperature Rating:0 – 60 °C
Environmental Conditions:5 – 95%
Engineered for efficiency and reliability, the Allen Bradley 1746-OB16 Digital DC Output Module is a key component in industrial automation systems, enabling precise control across various applications.
Featuring 16 channels capable of handling a wide voltage range from 10 to 50 volts DC, this module ensures versatile integration into diverse automation setups.
With an on-state voltage drop of just 1.2 volts and a low off-state output leakage of 1 milliampere, it maintains exceptional performance and energy efficiency.
Designed for seamless integration, the module supports a backplane current consumption of up to 0.28 amperes and can handle continuous current per output at 0.25 amperes at 60 degrees Celsius, ensuring robust operation under demanding conditions.
Equipped with advanced isolation features, the Allen Bradley 1746-OB16 ensures safe and reliable communication circuits and backplane connections, making it suitable for a wide range of industrial environments.
