Manufacturer:Allen-Bradley
Model:1756SC-IF8U
Type:ControlLogix Analog Input Module
Quantity of Input Channels:8
Input Range:-10VDC to +10VDC or 0VDC to +24VDC
Accuracy:+/- 0.5% Full Scale
Sampling Rate:Up to 1000 samples per second
Communication Protocols:[“ControlNet”,”EtherNet/IP”]
Power Consumption:Max 6.2 Watts
Operating Temperature:-20°C to +60°C
Dimensions:1.00 lbs (Approx. 0.45 kg)
Connector Type:36-pin
Configuration:Supports HART Communication

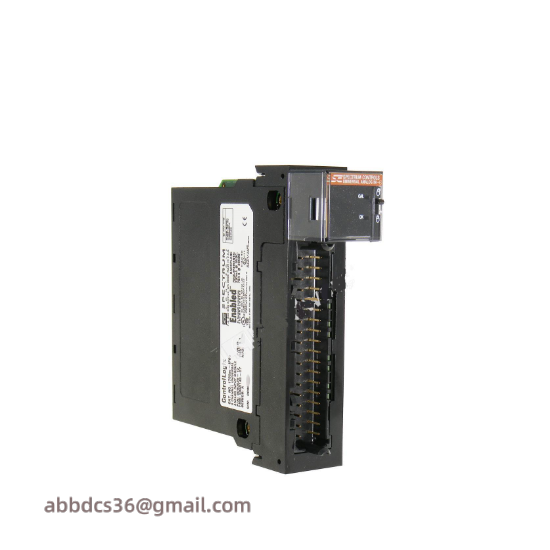

The Allen-Bradley 1756SC-IF8U ControlLogix Analog Input Module is a critical component for industrial automation systems, providing 8 channels of precision analog input for accurate data collection.
Featuring advanced technology, this module supports multiple data formats and a wide range of input voltages and currents, ensuring compatibility with various industrial equipment.
With real-time sampling capabilities, it offers quick and precise data acquisition, essential for monitoring and controlling complex industrial processes.
The module includes robust alarm detection mechanisms, such as under-range, over-range, and wire-off detection, enhancing system safety and reliability.
It is compatible with both ControlNet™ and EtherNet/IP™ networks, enabling seamless integration with existing industrial automation infrastructures.
Designed for ease of installation and maintenance, the 1756SC-IF8U can be mounted in a ControlLogix® chassis, requiring either a removable terminal block (RTB) or a compatible terminal block for secure connections.
