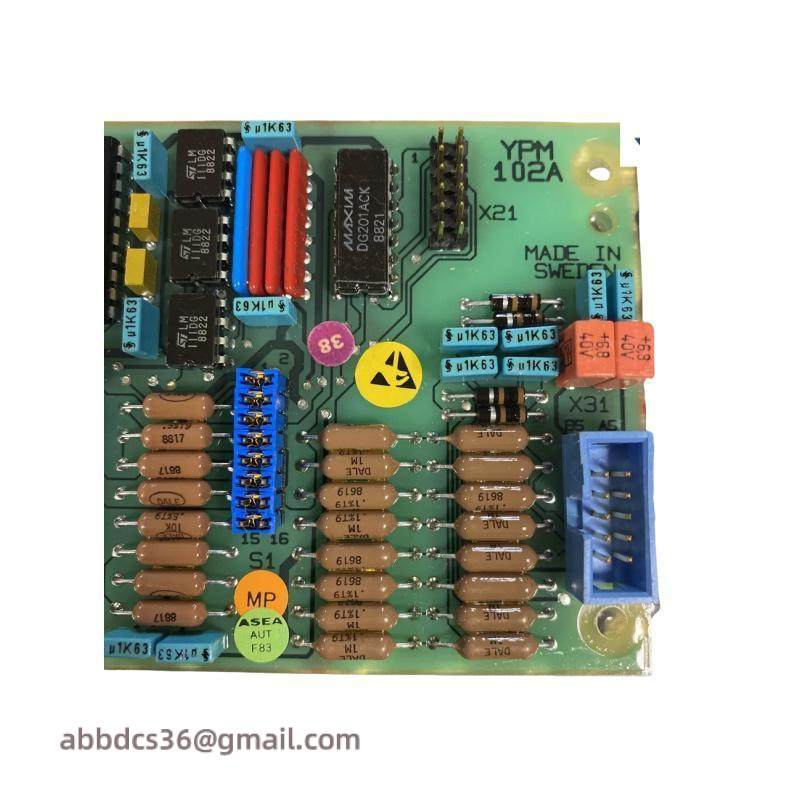

ABB YPM102A YT204001-AA – Industrial PLC Analog Output Module

Module Type:Analog Output

Model Number:YPM102A YT204001-AA

Brand:ABB

Operating Voltage Range:12-24V DC

Output Channels:1

Output Range:+/-10V DC

Communication Interface:MODBUS RTU

Relay Rating:5A/24V DC

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Enclosure Type:IP20

Dimensions (WxHxD):55mm x 55mm x 35mm

Weight:0.12kg

    Precision engineered for high reliability and long-lasting performance, the ABB YPM102A YT204001-AA is an indispensable component for any industrial control system. This analog output module is specifically designed to deliver precise control signals, essential for maintaining optimal operational conditions in diverse industrial applications.

    Featuring a wide operating voltage range of 24VDC ± 10%, this module ensures compatibility with a broad spectrum of power sources, making it adaptable to various industrial environments. With two output channels supporting both 0(4)…20mA and 0…10V signal types, it caters to a multitude of control needs.

    Equipped with fast response times of ≤ 1ms, this module ensures swift adjustments to changing conditions, enhancing overall system responsiveness. Its exceptional accuracy of +/- 0.2% guarantees reliable signal transmission, critical for maintaining the precision required in industrial processes.

    Operable within a temperature range from -20°C to +70°C, the ABB YPM102A YT204001-AA is designed for durability and reliability across a wide range of environmental conditions. The included relay contact rating of 3A at 250VAC/30VDC provides robust switching capability, supporting heavy-duty applications.

    The module boasts a 1000VAC isolation rating, ensuring safety and protection against electrical hazards. Its compact dimensions of 75mm x 115mm x 35mm and lightweight of 150g facilitate easy integration into existing control systems, without compromising on functionality or space efficiency.
