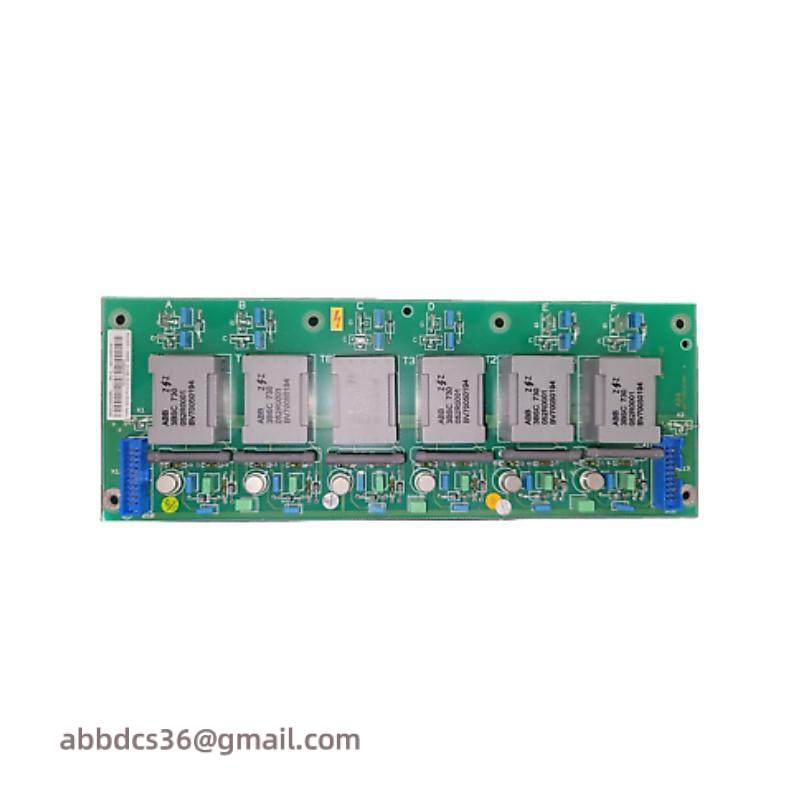

ABB SDCS-PIN-41A 3BSE004939R1 – Precision Pulse Transformer Module

Product Type:Pulse Transformer Module

ABB Type Designation:PLC

Model Number:SDCS-PIN-41A 3BSE004939R1

Active Braking Capability:High current, High EMF

Operating Frequency:2 kHz

Voltage Range:12-24 V DC

Power Consumption:5 W

Current Rating:1.5 A

EMF Output:Up to 1000 V

Response Time:Less than 1 ms

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions (WxHxD):75 x 55 x 35 mm

Weight:0.15 kg

    Precision engineered for demanding industrial environments, the ABB SDCS-PIN-41A 3BSE004939R1 Pulse Transformer Module ensures reliable and consistent performance in high-speed applications.

    Featuring a robust design with enhanced EMF output capabilities, this module is specifically tailored to deliver high-quality braking control without compromising on efficiency or safety.

    With its wide operating voltage range and efficient power consumption, the ABB module is suitable for integration into a variety of industrial automation systems, enhancing overall system reliability and responsiveness.

    Equipped with a compact size and lightweight construction, the module optimizes space usage and reduces installation complexities, making it an ideal choice for modern industrial setups.

    Backed by ABB’s reputation for quality and innovation, the SDCS-PIN-41A 3BSE004939R1 Pulse Transformer Module offers a proven solution for optimizing braking systems in machinery, ensuring smoother operations and reduced maintenance costs.
