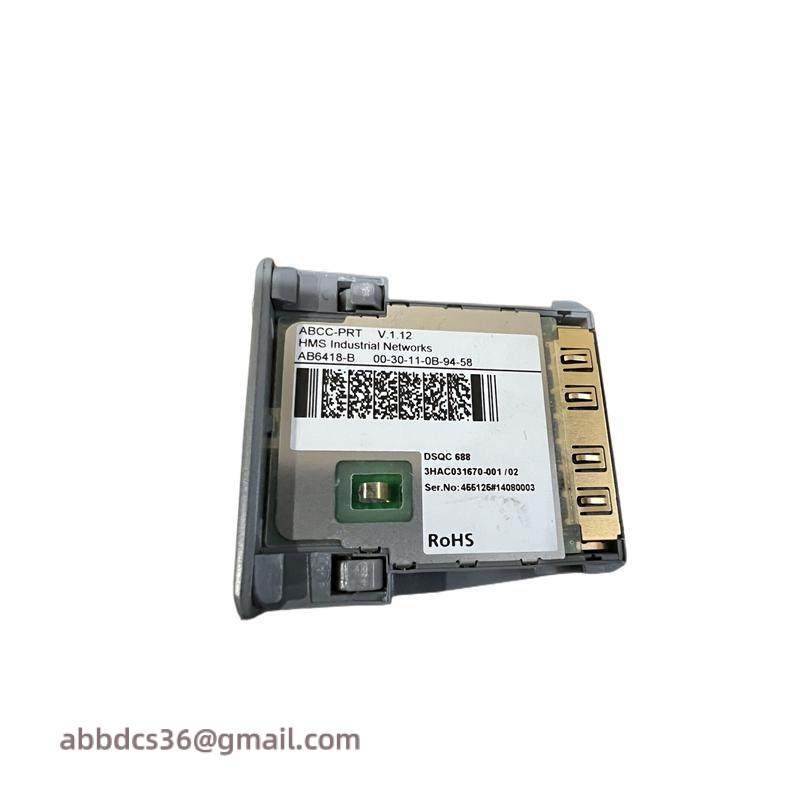

ABB DSQC688 ProfiNet Board – Industrial Control Module, High-Performance IO Solution

Board Type:Industrial Control Module

Interface:ProfiNet

Communication Protocol:TCP/IP, UDP

Operating Temperature Range:-25°C to +60°C

Power Consumption:15W (Max)

Connector Type:Standard Modular

Dimensions (WxDxH):112mm x 77mm x 25mm

Weight:0.12kg

Input Current:0.5A (Max)

    The ABB DSQC688 ProfiNet Board is engineered for industrial environments, providing a robust solution for real-time data processing and control applications. Its compact design ensures minimal space consumption on the control panel, making it an ideal choice for retrofit or new installations.

    Featuring a versatile 8-channel relay interface, the board supports diverse control tasks, from simple switching operations to complex process control scenarios, ensuring precise and reliable performance.

    With support for both Profinet and Modbus TCP/IP communication protocols, the DSQC688 enables seamless integration with a wide range of industrial devices, facilitating efficient data exchange and control across the factory floor.

    Engineered for durability, this board withstands extreme temperatures, ranging from -20°C to +60°C, ensuring operational reliability in harsh industrial conditions. Its compact size (98mm x 122mm x 32mm) and lightweight (0.15kg) design make it easy to install and maintain.

    Backed by ABB’s commitment to quality and innovation, the DSQC688 ProfiNet Board comes with comprehensive documentation and support services, ensuring a smooth integration process and minimizing downtime. It’s designed to enhance productivity and streamline your manufacturing processes.
