Operating Voltage:DC 12V
Maximum Output Current:150mA
Switching Frequency:1MHz
Load Compatibility:Up to 5V logic level
Package Size:14-pin DIP
Temperature Range:-40°C to +85°C
Supply Current:Max. 30mA

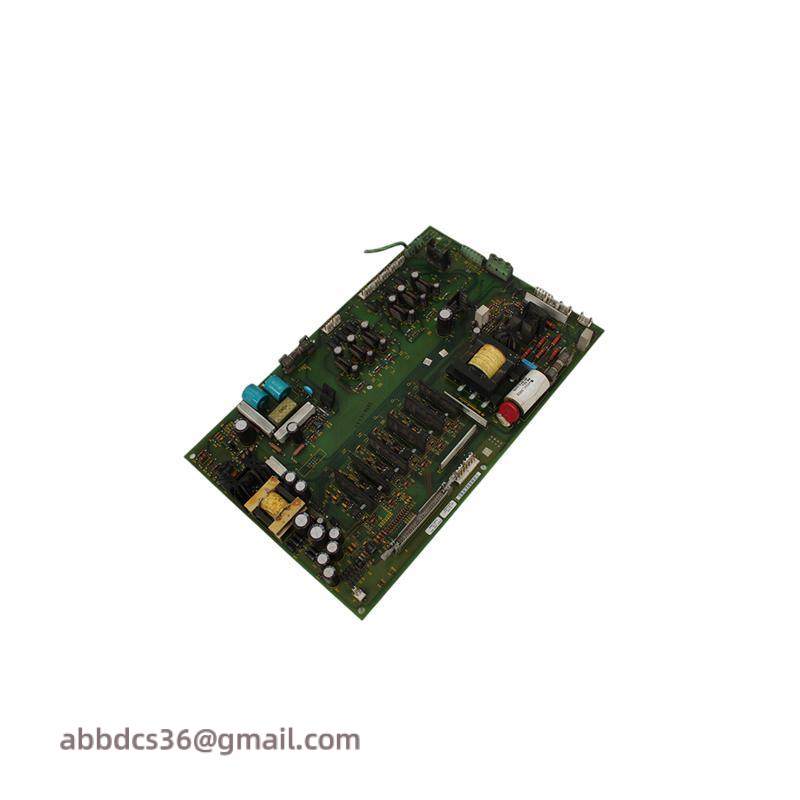

The AB 1336-BDB-SP29C 74101-169-53 Gate Driver Board is an advanced solution tailored for demanding industrial and commercial switching tasks. Its compact design ensures seamless integration into various systems without compromising performance.
Featuring a robust 14-pin DIP package, this board is built to withstand harsh environmental conditions, ensuring reliability across a wide temperature range from -40°C to +85°C. It is specifically designed to handle high-frequency switching at a staggering 1MHz, making it ideal for applications requiring precise timing and control.
With a maximum output current of 150mA, it is capable of driving a variety of loads efficiently, including components requiring 5V logic levels. This versatility makes it suitable for a broad spectrum of applications in electronics and automation.
Equipped with a DC operating voltage of 12V, the driver board ensures stable operation under varying power conditions, enhancing its adaptability in diverse environments. The efficient supply current management further optimizes power usage, contributing to the longevity and sustainability of the systems it powers.
The AB 1336-BDB-SP29C 74101-169-53 Gate Driver Board is engineered with meticulous attention to detail, providing users with a reliable, high-performance gate driver solution that can significantly enhance the functionality and efficiency of their switching circuits.
