Model Type:SLC500
Model Number:1746-OB16
Manufacturer:Allen-Bradley
Digital DC Output Module:Yes
Number of Channels:16
Input Voltage:24 VDC
Output Voltage Range:20.4-26.4VDC
On-State Voltage Drop:1.2 V
Off-State Output Leakage:1 MA
Load Capacity:1 MA
Current Rating (Backplane):0.28 A
Continuous Current per Output:0.25 A at 60°C
Continuous Current per Module:4 A at 60°C
Isolation (Communication Circuits):500 VDC
Isolation (Backplane):1500 VAC
Processor:SLC 500
Enclosure:Open Type
Mounting:Chassis
Temperature Rating:0 – 60°C
Environmental Conditions:5 – 95% relative humidity

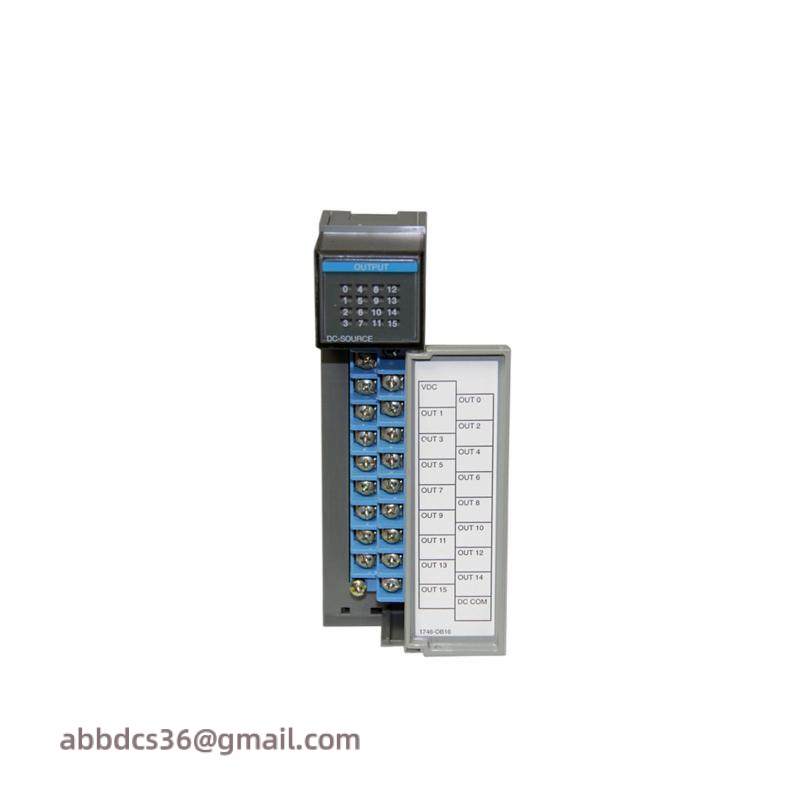

Integrating cutting-edge technology, the AB 1746-OB16 module is specifically designed to deliver high performance in industrial environments. Its robust construction ensures reliable operation under varying conditions.
Featuring 16 digital outputs, this module supports a wide range of applications, from simple on-off switching to complex control scenarios requiring precision timing and voltage adjustments.
With its ability to handle up to 0.28 A through the backplane and a current rating of 0.25 A per output at 60° C, the 1746-OB16 is capable of driving a variety of loads without overheating or compromising safety standards.
The isolation capabilities of the module guarantee signal integrity, minimizing interference and ensuring stable communication across different components in the system. This feature is particularly advantageous in complex automation setups where signal clarity is critical.
Designed for easy integration into existing systems, the AB 1746-OB16 supports a wide temperature range and operates efficiently in humid environments, making it a versatile choice for diverse industrial applications.
