5SHY3545L0010 3BHB013088R0001 thyristor module
5SHY3545L0010 3BHB013088R0001 thyristor module
Product manual:
5SHY3545L0010 3BHB013088R0001 thyristor module is a high-performance thyristor module produced by ABB (Alstom), widely used in industrial power control and power electronic equipment. Silicon Controlled Rectifiers (SCR) modules are commonly used in AC rectification, speed regulation, and power control applications.
Basic Product Information
Product Name: 5SHY3545L0010 3BHB013088R0001 Controllable Silicon Module
Manufacturer: ABB (Alstom)
Type: Controllable silicon module (SCR module)
Application areas: industrial power regulation, variable frequency drive, power control, motor speed regulation, power electronic equipment, etc.
main features
High power control capability:
The thyristor module can control high-power loads, especially suitable for power regulation in AC power systems.
High reliability and durability:
This module adopts high-quality materials and advanced production processes to ensure long-term efficient operation and good anti-interference ability.
Good heat dissipation performance:
The internal design considers heat dissipation issues and can operate continuously and stably under high-power loads, suitable for long-term continuous operation.
Low switching loss:
Having lower switching losses helps improve overall system efficiency and reduce energy losses.
Protective function:
Built in overload protection, short circuit protection, over temperature protection and other functions ensure the safety of the module in harsh working environments.
technical specifications
Rated voltage:
The module supports a wide range of operating voltages, typically ranging from 600V to 1200V rated voltage.
Rated current:
The maximum operating current can reach several hundred amperes (A), which varies depending on the model and operating conditions.
Switching frequency:
Usually supports higher switching frequencies to meet the needs of modern industrial control.
Heat dissipation requirements:
Due to being a high-power module, heat dissipation design is very important. Usually, it is necessary to install a suitable radiator to ensure normal operation.
Working temperature range:
The module is capable of operating over a wide temperature range, typically from -40 ° C to+125 ° C.

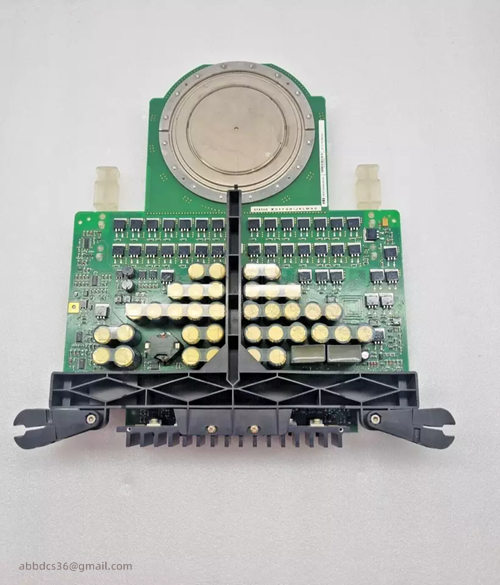

Product details picture:
